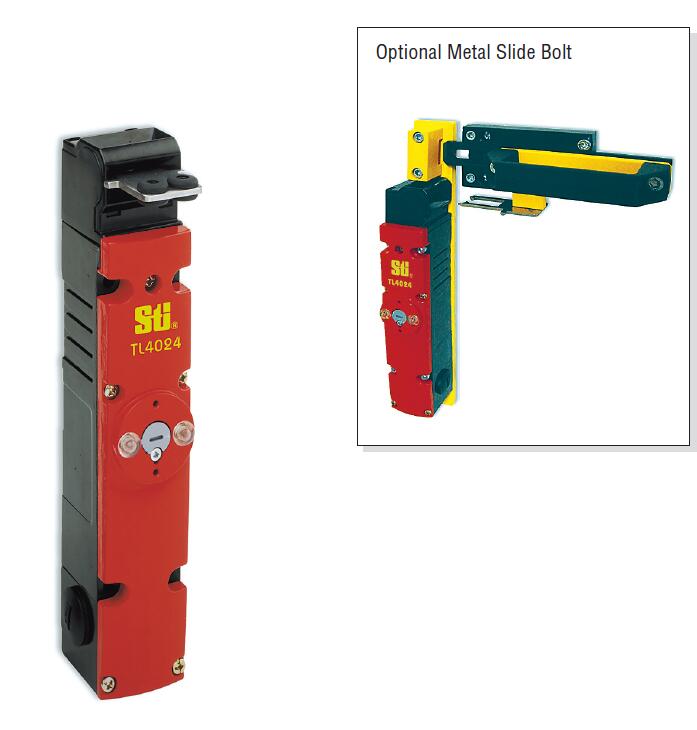

TL4024 具有保护门锁定功能的安全互锁开关；符合EN1088, EN60947-5-1, EN292, EN6 0204-1标准要求，UL与C-UL 列入，正在进行BG批准；高达1500 N (337 lb.)的锁定力能可靠锁定保护门直至机器安全可入；IP67 (NEMA 6)外壳使TL4024系列开关可耐水冲清洗；门、锁监测——TL4024系列开关共有4个触点：2个N/C安全触点+1个用于门位置监测的触点+1用于锁监测的触点；可通过在门的后端加载进行解锁，适用于循环时间较长的场合；狭窄的外形使其可安装到2英寸正方管上或其他空间受限的场合；可转头——TL4024系列开关的可转头提供8个促动器入口位置，可满足多种安装要求；可选钥匙操作——该选项允许手动打开保护门；与整体门把手一体的可选滑动插销可辅助该系列开关在滑动门与摆动门上的安装

两个固定在外壳盖上的发光二极管（红/绿）状态指示灯；寿命长，TL4024系列开关（包括各种型式的不锈钢促动器）的设计寿命为至少1百万次促动。Model Solenoid Contacts Wiring Entry Part No.

POWER TO UNLOCK (with door contact)

TL4024-10242TM (flat actuator) 24 VAC/DC 2 N/C + 1 N/O + 1 N/C 3 x 0.5 in. NPT conduit 44535-0010

TL4024-10242SM (90-degree actuator) 24 VAC/DC 2 N/C + 1 N/O + 1 N/C 3 x 0.5 in. NPT conduit 44535-0110

TL4024-11102TM (flat actuator) 110 VAC 2 N/C + 1 N/O + 1 N/C 3 x 0.5 in. NPT conduit 44535-0020

TL4024-11102SM (90-degree actuator) 110 VAC 2 N/C + 1 N/O + 1 N/C 3 x 0.5 in. NPT conduit 44535-0120

TL4024-10243TM (flat actuator) 24 VAC/DC 2 N/C + 1 N/O + 1 N/O 3 x 0.5 in. NPT conduit 44535-0030

TL4024-10243SM (90-degree actuator) 24 VAC/DC 2 N/C + 1 N/O + 1 N/O 3 x 0.5 in. NPT conduit 44535-0130

TL4024-11103TM (flat actuator) 110 VAC 2 N/C + 1 N/O + 1 N/O 3 x 0.5 in. NPT conduit 44535-0040

TL4024-11103SM (90-degree actuator) 110 VAC 2 N/C + 1 N/O + 1 N/O 3 x 0.5 in. NPT conduit 44535-0140

TL4024-10242SKM w/key (90-degree actuator) 24 VAC/DC 2 N/C + 1 N/O + 1 N/C 3 x 0.5 in. NPT conduit 44535-1110

TL4024-11102SKM w/key (90-degree actuator) 110 VAC 2 N/C + 1 N/O + 1 N/C 3 x 0.5 in. NPT conduit 44535-1120

TL4024-10243SKM w/key (90-degree actuator) 24 VAC/DC 2 N/C + 1 N/O + 1 N/O 3 x 0.5 in. NPT conduit 44535-1130

TL4024-11103SKM w/key (90-degree actuator) 110 VAC 2 N/C + 1 N/O + 1 N/O 3 x 0.5 in. NPT conduit 44535-1140

POWER TO UNLOCK (with door contact) (with back load unlocking)

TL4024-30242TM (flat actuator) 24 VAC/DC 2 N/C + 1 N/O + 1 N/C 3 x 0.5 in. NPT conduit 44535-0410

TL4024-30242SM (90-degree actuator) 24 VAC/DC 2 N/C + 1 N/O + 1 N/C 3 x 0.5 in. NPT conduit 44535-0510

TL4024-31102TM (flat actuator) 110 VAC 2 N/C + 1 N/O + 1 N/C 3 x 0.5 in. NPT conduit 44535-0420

TL4024-31102SM (90-degree actuator) 110 VAC 2 N/C + 1 N/O + 1 N/C 3 x 0.5 in. NPT conduit 44535-0520

TL4024-30243TM (flat actuator) 24 VAC/DC 2 N/C + 1 N/O + 1 N/O 3 x 0.5 in. NPT conduit 44535-0430

TL4024-30243SM (90-degree actuator) 24 VAC/DC 2 N/C + 1 N/O + 1 N/O 3 x 0.5 in. NPT conduit 44535-0530

TL4024-31103TM (flat actuator) 110 VAC 2 N/C + 1 N/O + 1 N/O 3 x 0.5 in. NPT conduit 44535-0440

TL4024-31103SM (90-degree actuator) 110 VAC 2 N/C + 1 N/O + 1 N/O 3 x 0.5 in. NPT conduit 44535-0540 TL4024-30242SKM w/key (90-degree actuator) 24 VAC/DC 2 N/C + 1 N/O + 1 N/C 3 x 0.5 in. NPT conduit 44535-1180

TL4024-31102SKM w/key (90-degree actuator) 110 VAC 2 N/C + 1 N/O + 1 N/C 3 x 0.5 in. NPT conduit 44535-1190

TL4024-30243SKM w/key (90-degree actuator) 24 VAC/DC 2 N/C + 1 N/O + 1 N/O 3 x 0.5 in. NPT conduit 44535-1510

TL4024-31103SKM w/key (90-degree actuator) 110 VAC 2 N/C + 1 N/O + 1 N/O 3 x 0.5 in. NPT conduit 44535-1520

POWER TO LOCK (with door contact)

TL4024-20242TM (flat actuator) 24 VAC/DC 2 N/C + 1 N/O + 1 N/C 3 x 0.5 in. NPT conduit 44535-0050

TL4024-20242SM (90-degree actuator) 24 VAC/DC 2 N/C + 1 N/O + 1 N/C 3 x 0.5 in. NPT conduit 44535-0150

TL4024-21102TM (flat actuator) 110 VAC 2 N/C + 1 N/O + 1 N/C 3 x 0.5 in. NPT conduit 44535-0060

TL4024-21102SM (90-degree actuator) 110 VAC 2 N/C + 1 N/O + 1 N/C 3 x 0.5 in. NPT conduit 44535-0160

TL4024-20243TM (flat actuator) 24 VAC/DC 2 N/C + 1 N/O + 1 N/O 3 x 0.5 in. NPT conduit 44535-0070

TL4024-20243SM (90-degree actuator) 24 VAC/DC 2 N/C + 1 N/O + 1 N/O 3 x 0.5 in. NPT conduit 44535-0170

TL4024-21103TM (flat actuator) 110 VAC 2 N/C + 1 N/O + 1 N/O 3 x 0.5 in. NPT conduit 44535-0080

TL4024-21103SM (90-degree actuator) 110 VAC 2 N/C + 1 N/O + 1 N/O 3 x 0.5 in. NPT conduit 44535-0180

RAMZLOCK KLTM Switch 24V ac/dc 450001 450002 450003

RAMZLOCK KLTM Switch 110V ac 450004 450005 450006

RAMZLOCK KLTM Switch 230V ac 450007 450008 450009

RAMZLOCK KLTM Actuator Standard Add A to Sales Part Number

RAMZLOCK KLTM Actuator Flat Add F to Sales Part Number

SR231A\SR230DD\SR226AM\SR224SMT\SR223SMT\SR220MP\SR208AD209AD\SR204P\SR203AM\SR202A\SR201A\SR131A\SR130DD\SR126AM\SR125SMS\SR122E\SR120MP\SR107AD\SR108AD\SR109AD\SR106ED\SR105E\SR05A\SR06AM\SR07P\SR08A\SR09A\SR12A\SR14A\SR15AD\SR18A SR19E

部份型号
